Right-of-Way Utility Site Plans

Our CAD Specialists ensure accuracy in right-of-way construction.

Utilities Site Plans detail utility locations and profiles, providing clarity in infrastructure. These plans are essential for work within the right-of-way. They ensure compliance with regulations and safety standards.

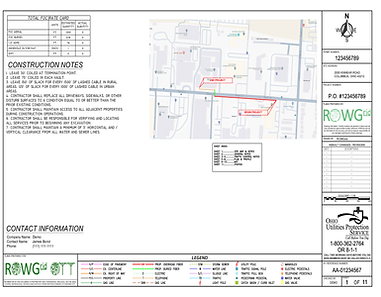

Tailored Coversheets for Your Projects

Kinnear Rd_DEMO_FINAL APPROVED PLANS_Page_01.tiff

Our utility site plans meet right-of-way permitting and construction requirements, featuring your logo on the cover sheet for a professional touch.

Utility Site Plans and Profiles

Kinnear Rd_DEMO_FINAL APPROVED PLANS_Pag

Utility locations are vital for safety in the right-of-way. Each sheet offers utility profiles, aiding informed decisions and efficient construction.

Maintenance of Traffic (MOT) Plans

Kinnear Rd_DEMO_FINAL APPROVED PLANS_Page_09.tiff

Maintenance of Traffic Plan (MOT) outlines essential guidelines for managing temporary traffic control during construction projects. Our detailed plans are designed for efficient traffic flow, minimizing disruptions while construction activities are underway.

Ready to request a site plan?
Let's Talk!
